The common parts in life are usually composed of the following parts: solar cells, batteries, solar street lamp dedicated drivers, light sources and light poles. During the day, the solar cell receives sunlight to generate electricity, charges the battery through the charging controller, and stores the electricity in the battery. When it gets dark, the solar energy stops charging, and the charging controller will turn on and off the light source after a delay of 6 to 10 hours. The electric energy from the battery can be used to run the light source continuously for 50 hours. According to the working time of 10 hours a day, it can last for 5 days.

1. Performance:

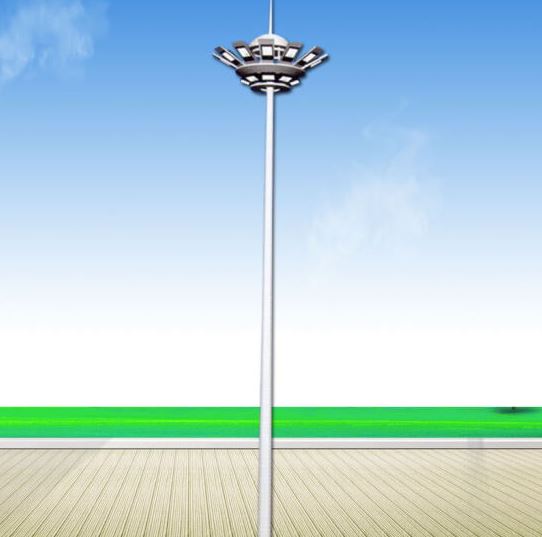

1. Lamp pole

The lamp pole is made of low-carbon steel plate, which is automatically cut, bent and welded. All structural parts of the pole are hot-dip galvanized and anti-corrosion surface treated, so all inner and outer wall surfaces are properly protected to prolong service life and save maintenance costs.

2. Explosion proof electrical control system

The explosion-proof electrical protection and control device is installed in the control box fixed at the bottom of the lamp. Equipped with lighting control and motor controller. The dual circuit power supply can realize full load lighting and local lighting. It has a variety of methods such as manual control, light control and computer time control, which can meet the different needs of users.

The traction cable is used for power supply, and the explosion-proof electrical control box and lighting cable are connected through a special plug with a locking device.

3. Explosion proof automatic lifting system

The system consists of explosion-proof motor, worm gear, spool and other parts. The self-locking worm gear drive mechanism can stop the lamp plate at any position. Torque protection configuration, with automatic and manual operation functions.

4. Wire rope guide pulley system

The device is composed of three groups of pulley arms, which are arranged at an angle of 120 and fixed on the fixed support at the top of the lamp pole. Each set of pulley arm is equipped with:

1 The unique discharge device can automatically lock and drop from the bulb panel;

2. The pulley made of non-metallic polymer insulating material will not damage the cable table;

3 Limiting device to prevent the wire rope from falling off the guide pulley.

5. Hook system

The special geometric switch of the hook system is designed by computer aided design. After accurate calculation and actual demonstration, it can be ensured that when the lamp panel is raised to a predetermined position, the hook will move relative to the discharge device under the pull of the wire rope to achieve the purpose of locking and releasing. Under normal use, the wire rope will be discharged, thus extending the service life of the wire rope and ensuring that the light plate is in a stable state under severe weather conditions.

6. Guidance and braking system

The system plays a guiding role in the normal rise and fall of the light panel. After the cable is disconnected, the system will act as a brake and protect the bulb panel from falling.

The guiding system uses a spring pressed nylon wheel to fix the lamp plate in the center during the lifting process to prevent the lamp plate from drifting and colliding with the lamp column and damaging the surface corrosion of the lamp column or lamp plate.

The braking system is composed of three groups of equipment, and the included angle between them is 120. The three brakes are simultaneously engaged on the lamp post. After tightening the suspension wire rope again, the brake will release from the lamp post so that the lamp plate can be raised and lowered again.

Always protect and lock the brake when unloading the wire rope.

7. Lightning protection and grounding device

The explosion-proof High pole lamp is equipped with a special grounding device, and its grounding resistance is not more than 10W.

8. All mechanical transmission parts are subject to explosion-proof and non electrical treatment.

The safety of high pole lamp has always been the main concern of the society. With the wide use of High pole lamp, people pay more and more attention to the security of High pole lamp. What are the factors that affect the safe use of High pole lamp, and how to avoid these hidden dangers?

Some people think that the high pole lamp is too high, maintenance is too difficult, and the daily maintenance of the high pole lamp has not been completed. Therefore, there are potential safety risks, safety accidents and high costs. There are many factors that affect the safe use of the high pole lamp. The maintenance and repair of the high pole lamp must be done well to avoid accidents.
