Solar Powered Water Pumps

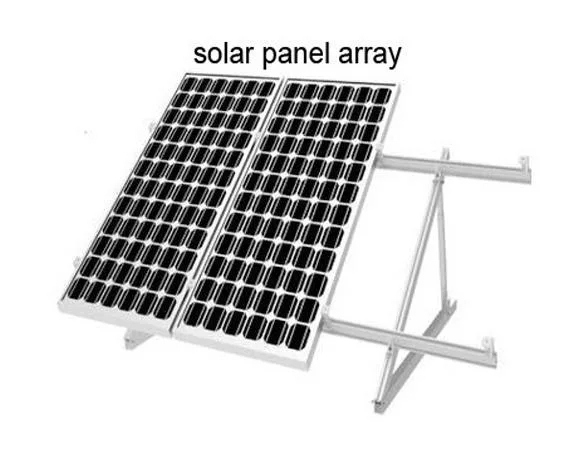

The Soalr Water pumps only have pums and controller together with accessories. If you need soar panel , solar panel installation bracket , battery, pls tell us,we can also supply you together according to your detailed requirement to configurate.

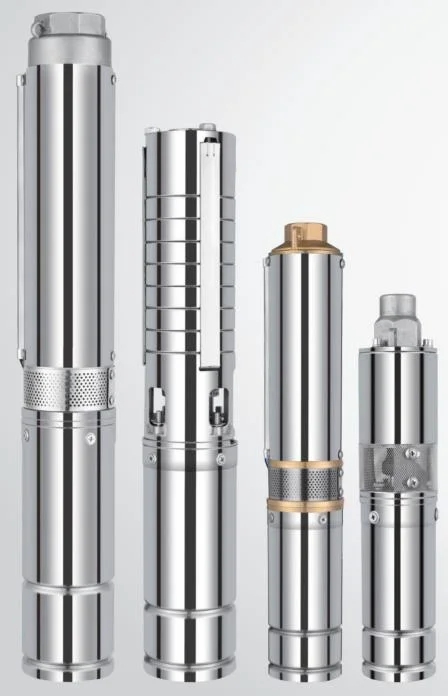

DC solar powered water pump  Sumergible DC solar 2 HP solar system for deep well pump

Our solar powered water pumps are mainly used for:

1.  Agriculture Irrigation

2.  Drinking water and Living water

3.  Remote areas, farming

4.   Fountains

5.  Circulation and filtration of Swimming pool

OUR SOLAR PUMP ADVANTAGES:

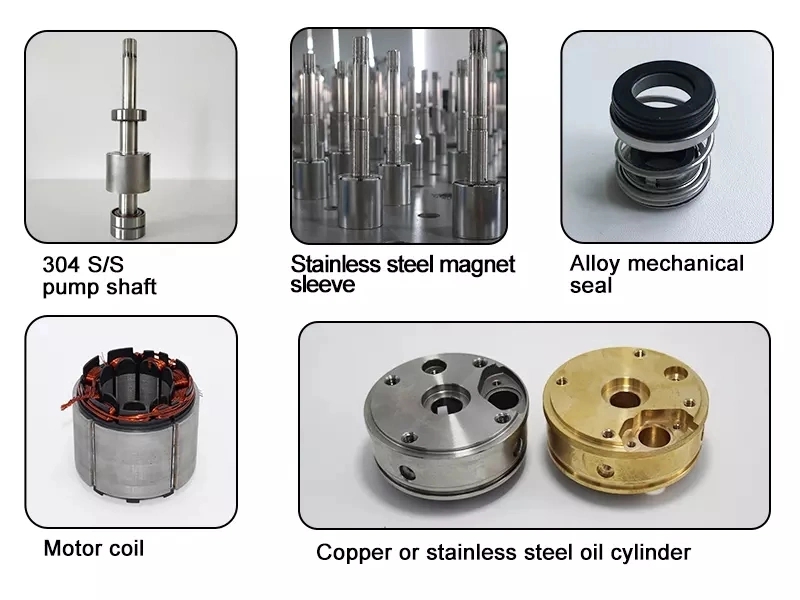

(1)Permanent magnet DC brushless synchronous motor: the efficiency is improved by 15- 20%; Save energy; Reduce the consumption of solar pump

(2)304 Stainless Steel pump shaft

(3)Double bearing,motor base work better under more axial pressure

(4)Alloy mechanical seal ,longer working life and high reliability

(5)Intelligent water shortage protection

(6)MPPT controller

ADVANTAGE OF DC SOLAR PUMP

1- Permanent magnet DC brushless synchronous motor: The efficiency is improved by 15%~20%, Save energy.

2-Brass or stainless steel outlet/controller/oil cylinder.

3-Janese NSK bearing: prolong the working life.

4-Alloy mechanical seal: Longer working life and high reliability.

5-Motor coil is made by automatic winding machine with centralized winding technology, motor efficient is much improved.

6-The pump parts are processed by high-precision and fully automatic machines,strictly controlling the dimension precision and smoothness.

7-Intelligent water shortage and full water protection.

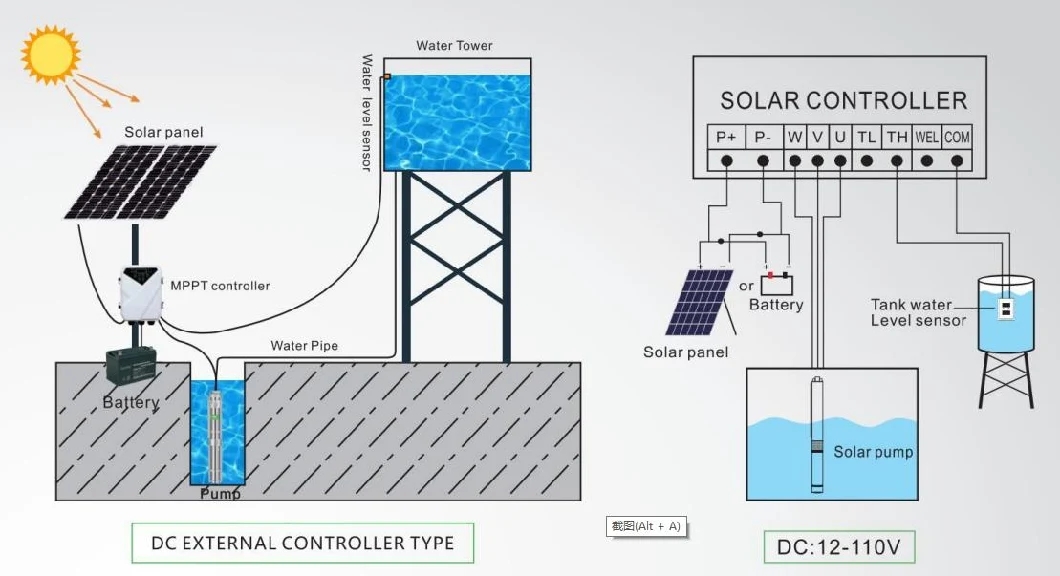

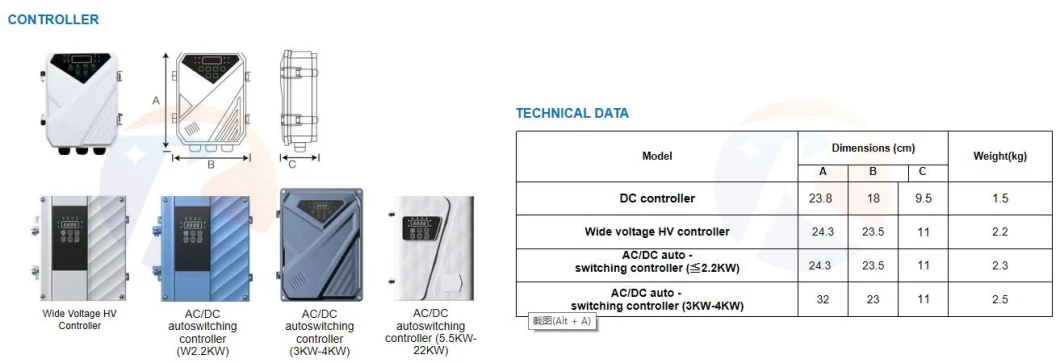

8-DC controller:

 (1)Waterproof grade: IP65

 (2)MPPT function, the solar power utilization rate is higher.

 (3)Automatic charging function

 (4)LED displays the power, voltage, current,speed etc working condition adn error code

 (5)Frequency conversion function: It can automatically run with frequency conversion according to the solar power , and user also can change the speed of pump manually.

 (6)Automatically start and stop working.

 (7)Waterproof and leak-proof: Double seal effect.

 (8)Soft start: No impulse current, protect the pump motor.

 (9)High voltage/Low voltage/Over-current/High temperature protection

 9-2 years warranty.

3DPC

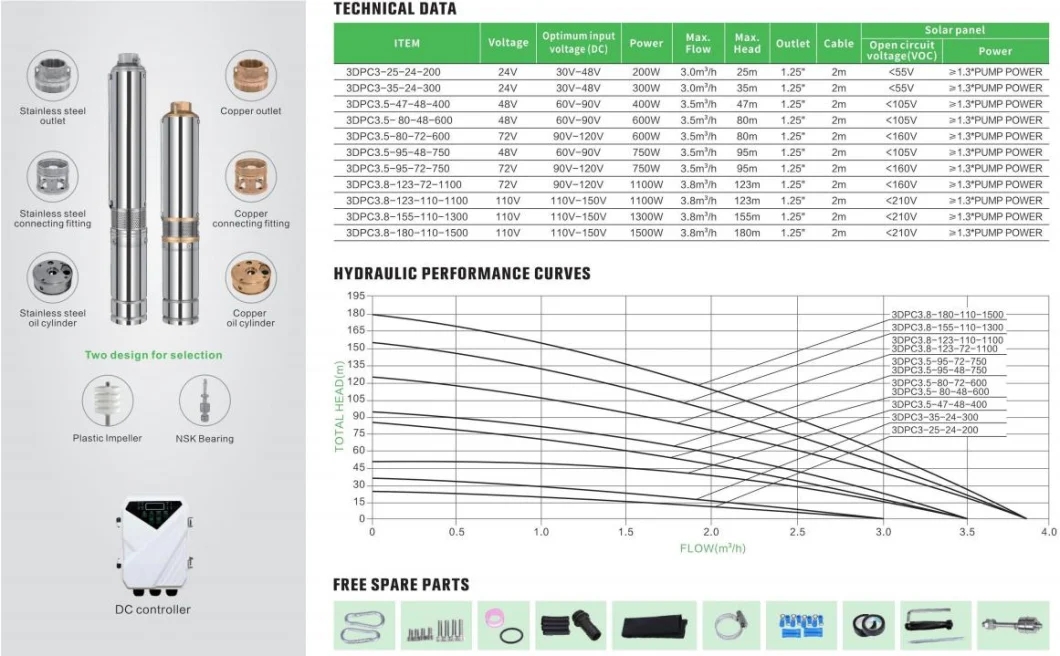

3" DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER

How to chose the right water pump?

First Step: Confirm your required specification

1. what is the depth of the well?

2.Diameter of the Well to confrim which size of the pump 3",4" or 6" .

3.Distance between the well and the water tower? Height of the tower?

4.Quantity of Comsuption of water ? (Or flew Water flow rate)

Second Step: Requirement to Specification )

1.Confirm your demand of the pump(daily water consumption and lift head)

2.Confirm lift head is nominated or maximum

3.Chose solar panel which is best suitable.

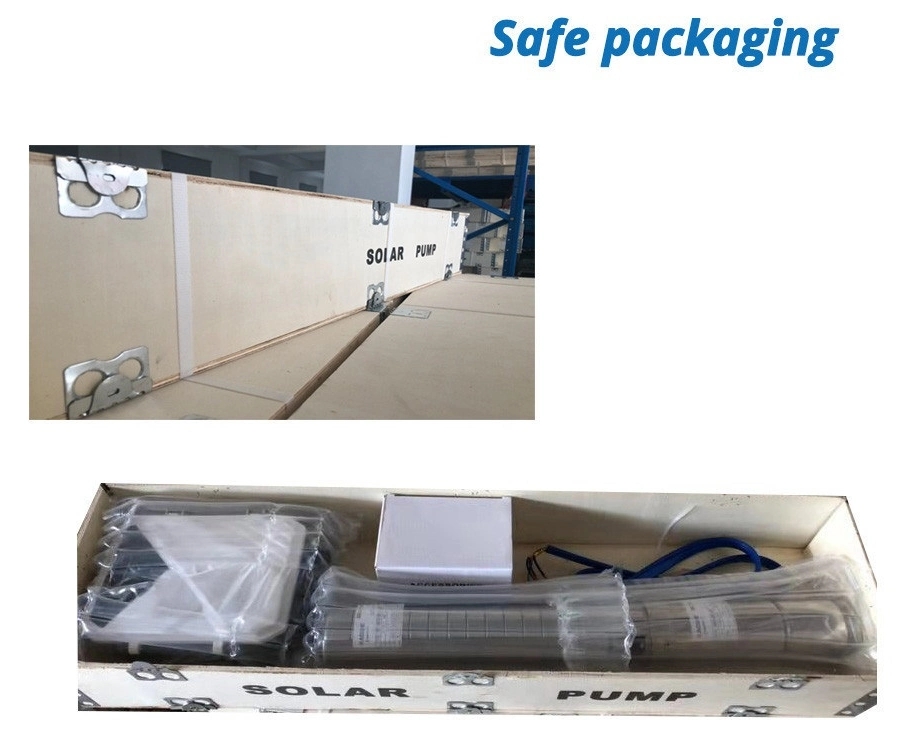

Packaging & Shipping

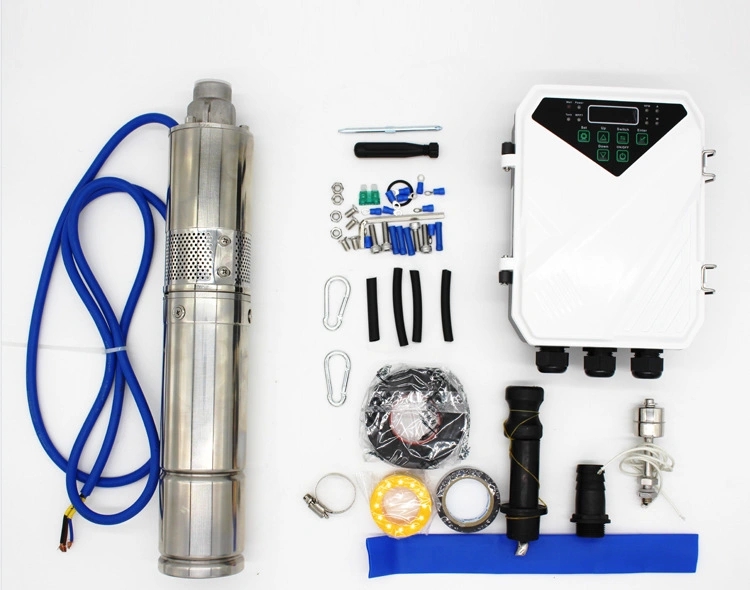

hat We Get For You (Package Include):

- 1 x DC brushless solar Pump with 2m cable

- 1 x Pump controller with MPPT function

- 1 x Stainless steel float switch (sensor for the tank)

- 1 x Pump outlet joint connector

- 1 x Splice kit for cable join

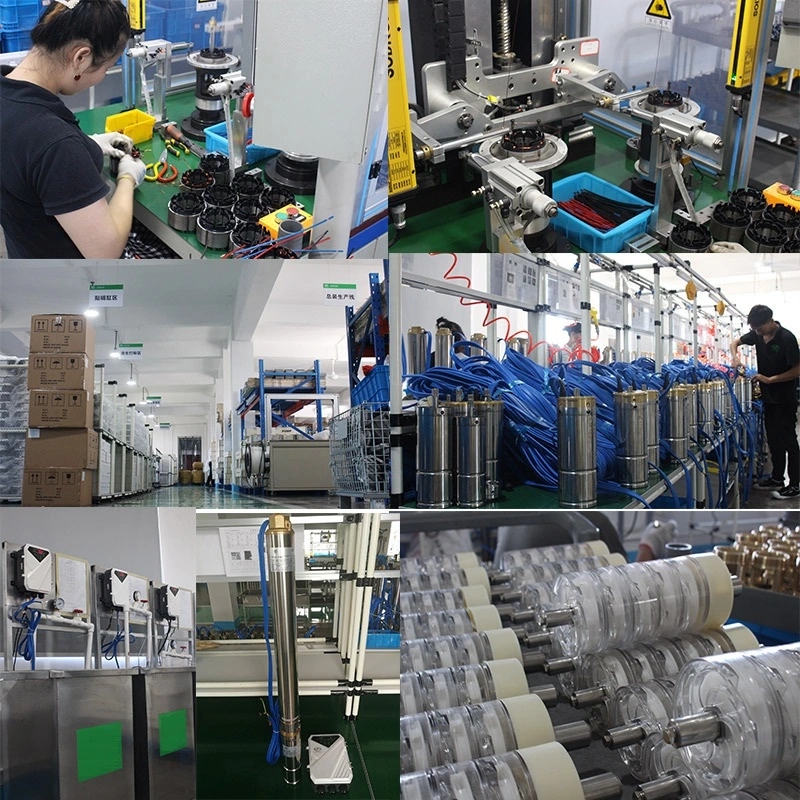

Working Shop

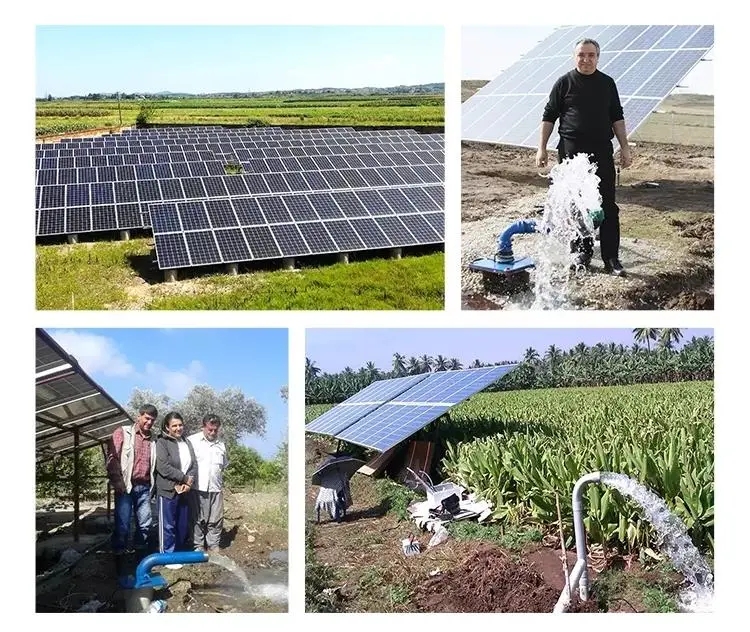

Project Show
