In the well-protected cartons or wooden boxes with pallets.

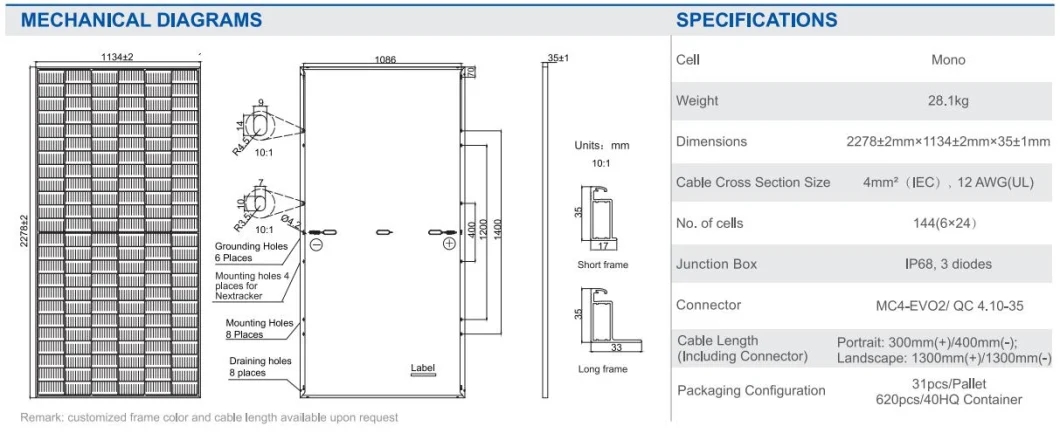

Dimensions 2279 x 1134 x 35 mm

Weight 28.2 kg

Glass High transmission, Low iron, Tempered, ARC, Transparent, 3.2 mm Cell encapsulation

EVA (Ethylene Vinyl Acetate)

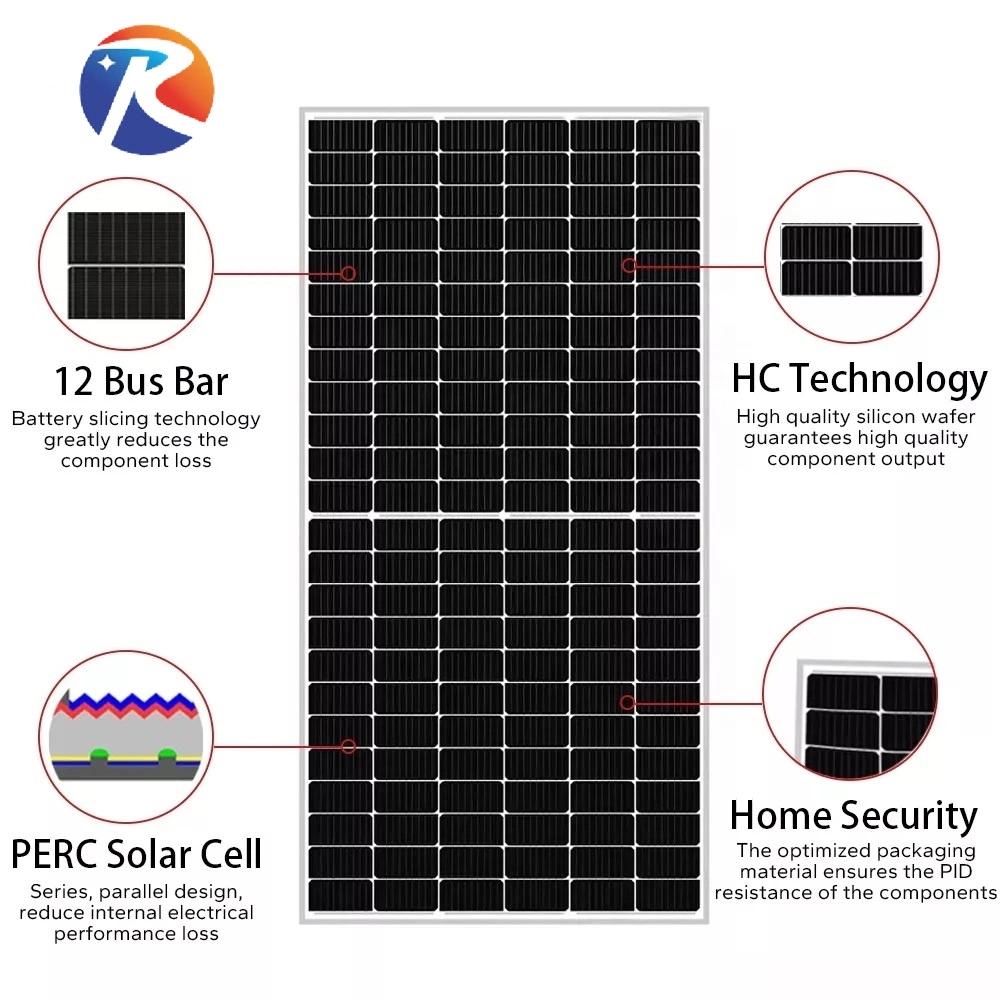

Cells 144 monocrystalline half-cut PERC cells 182 x 91 mm

Back sheet Composite multilayer film

Frame Anodized aluminum frame with mounting and drainage holes

Junction box Certified according to IEC 62790, IP 68 approved, 3 bypass diodes Cables Solar cable, length 1400 mm or customized

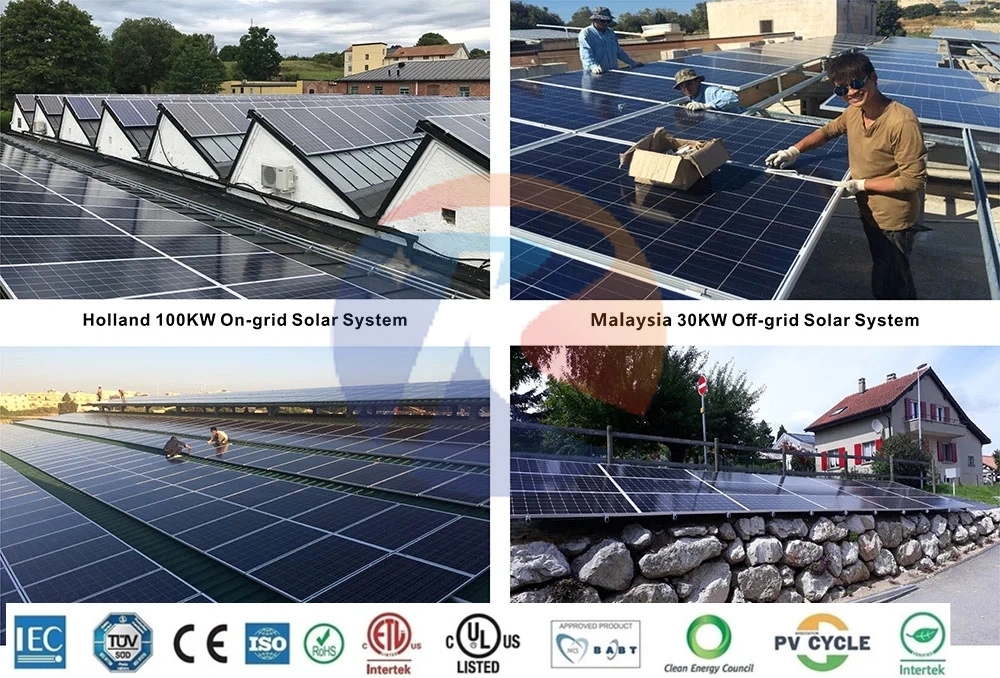

Project Case

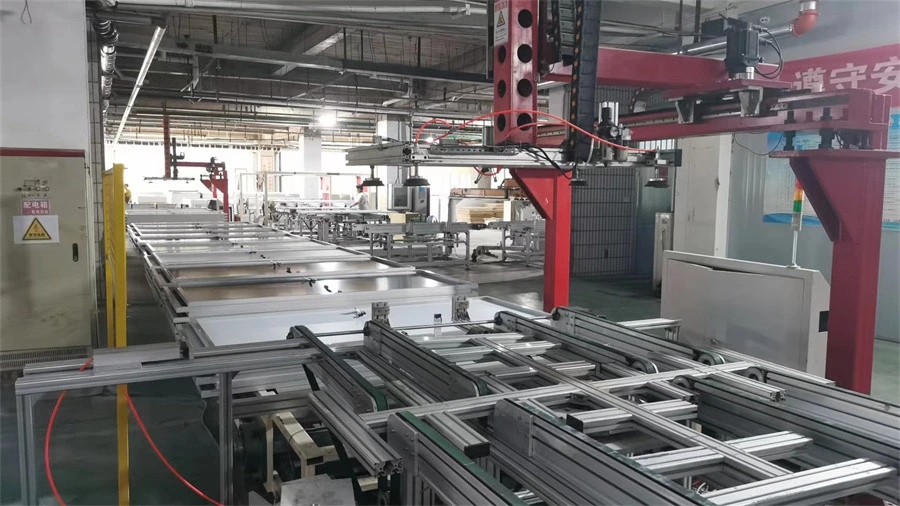

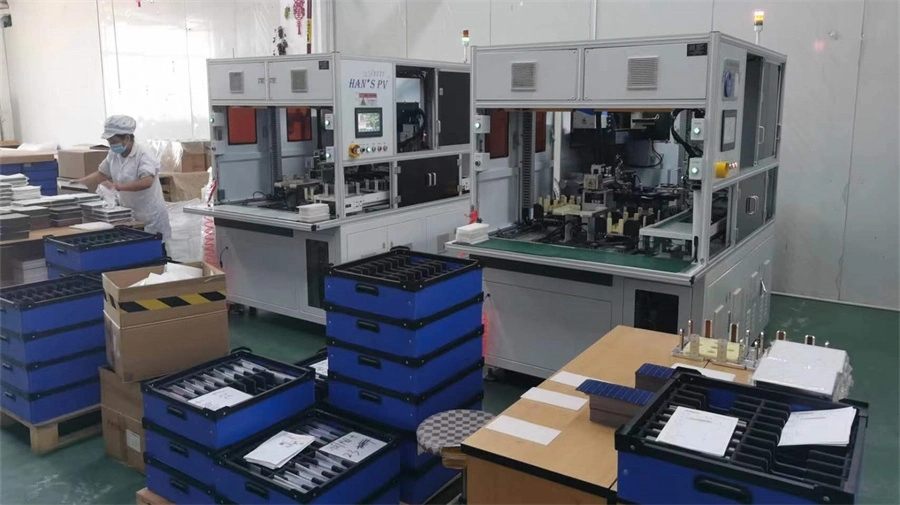

Workshop Details:

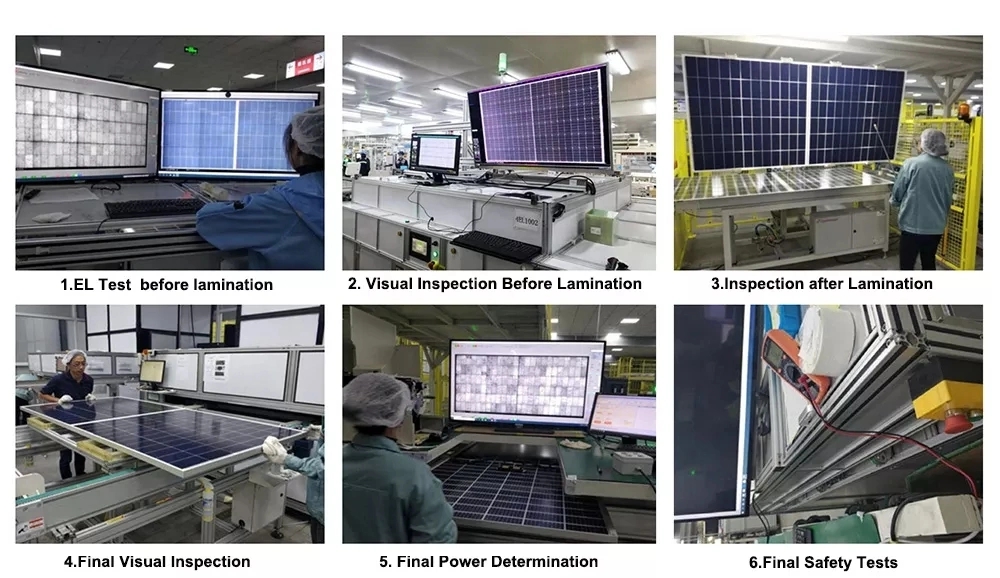

Quality Control

Quality Control
